Vertical Honing Machine

Categories
#
#

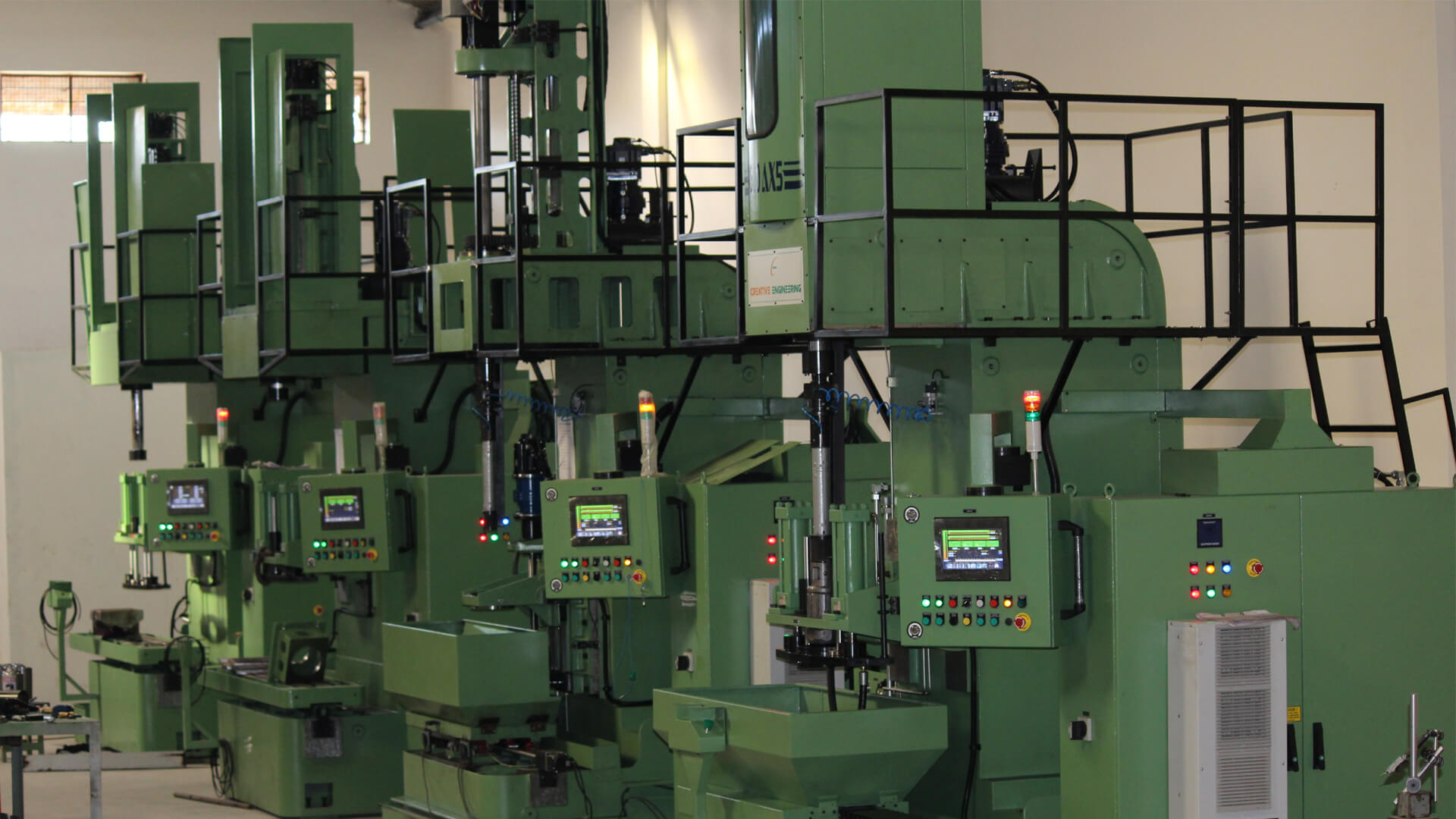

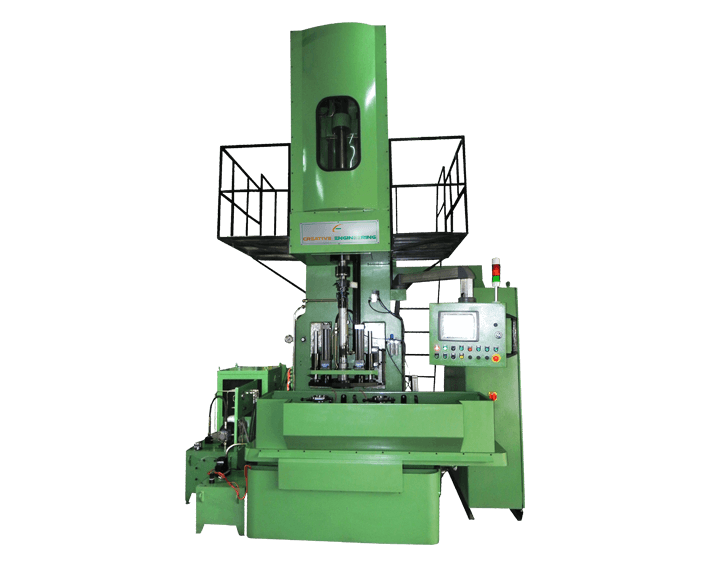

Creative has been designed for cnc controlled high precision vertical honing machine(SSVA-550).This type honing machine specially suitable for All types of cylinder liner and Cylinder Blocks.

IMPORTANT FEATURES OF HONING MACHINE

  1. Honing machine is fully controlled by mitsubishi control system.
  2. Honing m/c is providing with Auto sizing facility which measures the bore with honing.
  3. Honing m/c provided with linear indexing table driven by servo motor.
  4. 2 No’s fixture are provided so that one can be used for honing operation and other one can be used for loading the component
  5. Axial clamping facility is given to hone the wet liners (sleeve).
  6. Advance coolant filtration system is adopted which eliminate magnetic separator. coolant chiller is also provided.
  7. Hydraulic chiller is provided for the power pack to avoid heating of the oil.
  8. Spindle stroking is given by servomotor which enable as to control the stroking in microns
  9. Stroke Length up to 550mm
  10. Attractive, long-life, low-maintenance stainless steel enclosure provides a clean working environment and ensures operator safety.

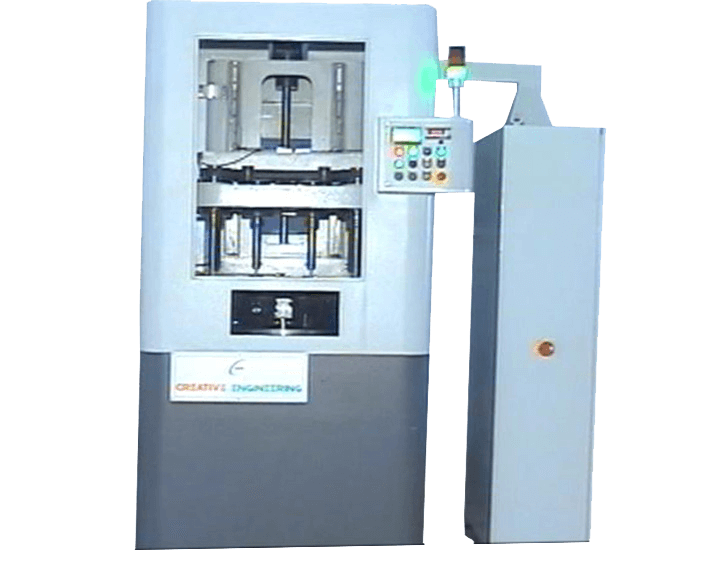

PRECIDOR HONING MACHINE / PSV -600

It is a Multi spindle precidor type Honing Machine, this type pricision machine suitable for Gear honing, connecting rod honing, Rocker Arm honing ext.

IMPORTANT FEATURES OF HONING MACHINE

  1. CNC Controlled servo motor
  2. It is a most productive and durable machine.
  3. User Friendly, Touch Pad Numeric Control Panel

Speciation

  1. Machine Type - Vertical
  2. Diamond Range – 50 to 200mm
  3. Spindle Motor - 7,5 kW (10 hp)
  4. Stroking- Servo motor
  5. Job clamping &- Honing Fixture
  6. Component transfer- Rotary Table

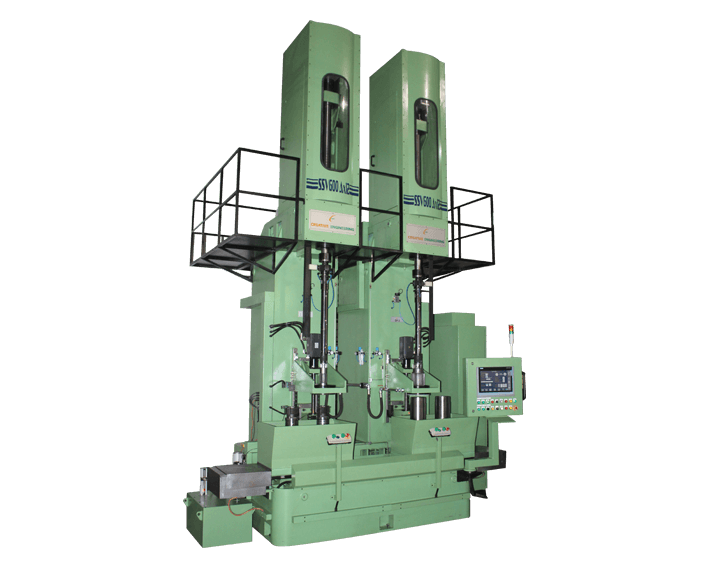

VERTICAL HONING MACHINE SSV-550

SSV550 is a Without Axial Clamping System. This type honing machine specially suitable for All types of cylinder liner and Cylinder Blocks.

    Features

  1. Stroke Length up to 550mm
  2. Attractive, long-life, low-maintenance stainless steel enclosure provides a clean working environment and ensures operator safety.
  3. User Friendly, Touch Pad Numeric Control Panel
  4. Automatic and Manual Start Cycle Procedure. Honing Machine (SSVA-550) Specification
  5. Machine Type - Vertical
  6. Diamond Range - 50 to 200mm
  7. Spindle Motor - 7,5 kW (10 hp)
  8. Stroking - Servo motor
  9. In process Gauging - Air Sizing
  10. Component transfe - Table Servo
  11. Spindle rotation - Triplex chain drive

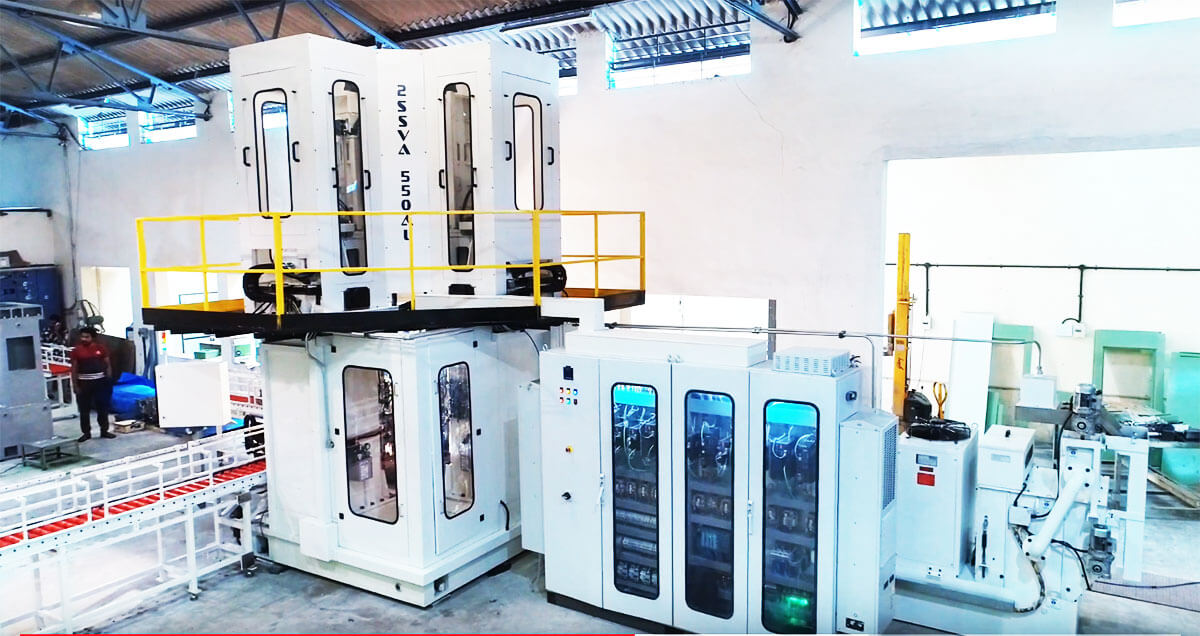

Twin Spindle Honing Machine

Honing machine 2SSVA 550AL (Twin spindle, stroking vertical, Axial clamp, 550mm- Auto Loading).

Component : Cylinder block.

    Features

  1. Honing Diameter Range : Ø60 to Ø180.
  2. Single Expansion tool (Servo).
  3. Double expansion tool, (Servo + servo or Servo + Hydraulic expansion).
  4. Linear table, Rotary index table.
  5. Auto Loading and Unloading & Manual loading and unloading.
  6. In-Process gauging.
  7. PLC Control system (SIEMENS,MITSUBISHI).
  8. Industrial PC SCADA.

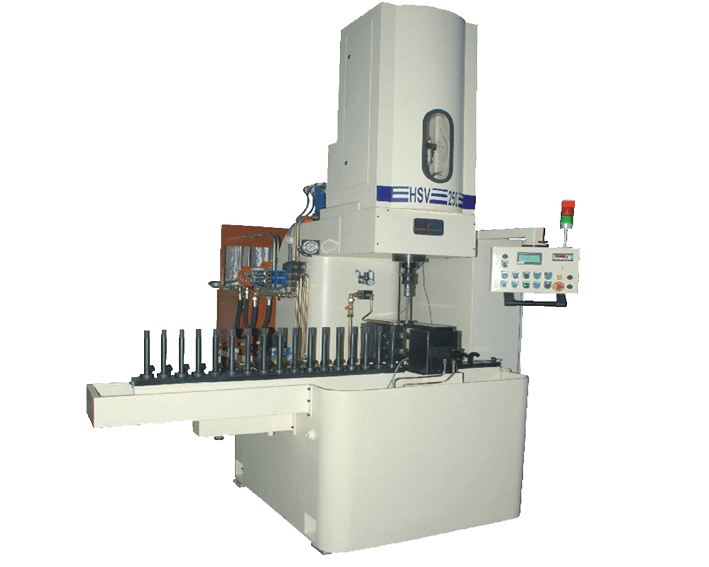

VERTICAL HONING MACHINE / MODEL HSV-250

This type of honing machine specially designed for shaft honing purpose.

    Features

  1. Touch Screen Control - easily adjusts speed.
  2. Designed for low maintenance

Speciation

  1. Machine type - Vertical
  2. Stroking -Hydraulic Cylinder.
  3. Stroking Limit - 250mm.
  4. Honing Range-13mm.
  5. Component transfer- Chain type.
  6. Job clamping &- Hydraulic clamp
